Mighty Module Model SC5010
Thermocouple And RTD Input Two Wire Transmitter

Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument

Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument

Features

Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Provides DC Output Proportional to a Thermocouple or Platinum RTD Input
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Linearized for J, K, R, S, T, E, & N Thermocouples and Platinum RTDs
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument 2, 3, or 4-Wire RTD Inputs
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Full Galvanic Isolation
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Microprocessor Based
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Field Rangeable
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument PC Configurable Via RS232 Port
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument On-board Configuration via Membrane Keypad
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Displays Temperature in Linear Mode
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Displays Current Output in Nonlinear Mode
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Test Points for Loop Current Monitoring Without Breaking Loop Circuit
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Upscale or Downscale Burnout Indication
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Intrinsically Safe Design - FM Approved
Thermocouple,RTD,Input,Two Wire Transmitter,4.5 Digit,Display,Model SC5010,Wilkerson Instrument Permanent Warranty


Description

The SC5010 provides a DC output current (4/20 mADC) proportional to the temperature as measured with a thermocouple or RTD, using microprocessor based, digital circuitry in a "hockey puck" style case. The output can be linearized for both thermocouples and platinum RTDs, and the LCD display indicates temperature in °C or °F when operated in the linearized mode, or output current when in the  non-linearized mode.

The input and output are isolated.

The user may select thermocouple types J, K, R, S, T, E, or N, or 100 ohm Pt RTD as the input sensor. RTD connections for 2-wire, 3-wire and 4-wire sensors are provided. The transmitter compensates for the lead wire resistance in the 3-wire configuration and provides true measurement of the resistive element without lead wire error in the 4-wire configuration.

The 4 1/2 digit display is an accurate temperature indicator that functions over the entire range of the selected sensor. Its display capability is independent of the selected temperature range for the 4/20 mADC output.  Even if the output goes overrange, the display will continue to accurately indicate the sensor temperature.

Linearization is accomplished via a 256 point look-up table program.

Four different user configuration methods are available. They are:

    1. On-board configuration in linearized mode via keypad and display.
    2. On-board configuration in non-linearized mode via keypad, display, and
        temperature tables.
    3. Configuration via keypad using a calibrator.
    4. Configuration using a Personal Computer and the CIK005A.

Specifications

INPUT
TC types: J, K, R, S, T, E, & N

Spans: User configurable from 5mv minimum to maximum usable range

Linearization:

Type Maximum Linearized Range:
J -210°C to  + 760°C
K -250°C to  +1372°C
R - 50°C to  +1768°C
S - 50°C to  +1768°C
T -270°C to  + 400°C
E -260°C to  +1000°C
N -250°C to  +1300°C

Reference Junction Compensation Accuracy
  ± .25°C

Impedance
  > 1 megohm

Span Adjustment
  Continuous from 6.25% to 100% of T/C  Range.
    (5 mv minimum span)

RTD
100 ohm Platinum,
  .00385 and .00392 alpha
  2, 3, or 4-wire connection

Maximum Usable Range
  -200°C to +850°C

Minimum Usable Range
  45°C

Zero Adjustment
  Continuous from 0% to 90% of temperature sensor range

ISOLATION, OUTPUT/INPUT
Breakdown: >1000 volts
  RMS sine wave
  Resistance: >500 megohms

OPERATING TEMPERATURE
  -40°C to  80°C
  -40°F to 176°F

RFI IMMUNITY
  Filtering and Shielding to reject RFI Interferance

OUTPUT
Range: 4/20 mADC

Modes (User Configured)
  Normal / Reverse acting
  Linear / Non-linear

Burnout Indication (User Configured)
  Upscale / Downscale

Linearity
  ± 0.25°C of NIST Tables

Accuracy
± 0.05% of span

Repeatability
  ± 0.01% of span

Input to Output Linearity
  ± 0.01% of span

Response Time
  < 1 second

Ripple (peak to peak)
  < 0.1% of full scale

Power Supply Effect
  < 0.001% of span / Volt

Ambient Temperature Effect
  ± 0.005% of span /°C

Long Term Stability
  ± 0.0005% of span/6 mo.

POWER
10-36 VDC, polarity protected
(current limited to 30 mADC max.)

DISPLAY
Digit Size
  0.35 inches high
  4.5 digits

Update Rate
  3 / second

Operating Temperature
  -20°C to  80°C
  - 4°F to 176°F



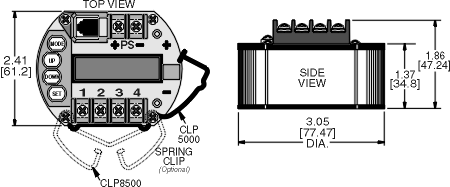

SC5010

SC5010, (   ) , (   ) , (   ) , (   ) , (   )
|
|
|
|
|
|
|
|
| 4/20 - 4/20 mA Output
20/4 - 20/4 mA Output
|
|
|
|
|
|
| L - Linearized
N - Non-linearized
|
|
|
|
|
|
| Burnout
  US - Upscale on Open Sensor
  DS - Downscale on Open Sensor
|
|
| Temperature Range
   (specify°F or°C)
| Sensor Type
  J, K, R, S, T, E, or N - Thermocouple
  3850 or 0392, 2W - 2-wire RTD
  3850 or 0392, 3W - 3-wire RTD
  3850 or 0392, 4W - 4-wire RTD

Example: SC5010,J,0/500F,US,L,4/20
