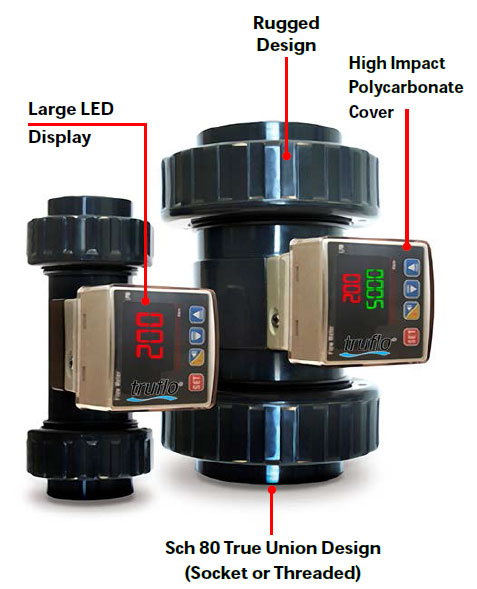

Truflo® TK Paddle Wheel Plastic Flow Meter

• High Accuracy
  Less than ± 1.0% of Full Scale

• Unit of Flow Measurement is Selectable
  (Liter/Gallon/Kilo-liter)

• Corrosion Resistant Materials
  PVC/PP/316SS

• Low Cost Visual Indication

• Easy Installation – No Mounting Kits

• High Flow Range
  (.3m/s – 10m/s ) (.98 ft/s – 32.8 ft/s)

• Easy to Program

• Compact Design

• Large Bright LED Digital Display

• Horizontal or Vertical Installation

• Size Range 1/2" – 4”

• Low Pressure Drop

• (4-20 mA) -(0-5 VDC)-(Pulse)-Output Signal

• NEMA 4X Enclosure

• Suitable for Corrosive Environments

• Password Protected Security

• True – Union Design ½” – 2” (Flanged 3” – 4”)


Specifications

• Fluid - Water or Chemicals Liquid – Viscosity Range: .5-20 centistokes

• Accuracy - > + 1.0% of F.S. @ 20°C (68°F) – Repeatability + .5% of Full Scale

• Max Flow Velocity - 10 m/s max – (32.8 ft/s max)

• Min Flow - 0.3 m/s min. – (.98 ft/s min)

• Operating press - 150 psi

• Turndown - 10:1

• Response time - Real Time

• Material of Construction - Paddle: Tefzel Body: PVC/PP/316, Shaft: Zirconium Ceramic Seals: EPDM/FPM

• Operating Temperature - PVC < 60°C (140°F) PP < 80°C (176°F) 316 SST< 120°C (148°F)

• Electronics - + 50°C (122F)

• Protection Class - IP66 NEMA 4X

• Approval - CSA CE Rohs


Truflo® TK Data Sheet
