Specifications
|
Pipe Sizes
|
1/2", 3/4", 1", 1-1/2" and 2" |
|
Fluid
|
Water to 5% (0 to 50,000 ppm) particulate |
|
Accuracy
|
+/- 2% of rate > 1 ft/sec. +/- 0.10 ft/sec < 1ft/sec |
|
Interface & Data
|
Data Outputs:
Isolated 4-20 mA output – fully configurable, invertible
0-1000 Hz Pulse output – fully configurable, invertible
Data logging:
date/time stamped flow rate and flow total data in FAT32 file format, easily imported into Excel. Configurable to trigger on time interval (1-999,999 sec), rate and/or total set-point values. Store up to 191,800 log events in the memory buffer, downloadable to flash memory via USB port.
External Communications:
Computer connection via optional Communications Modules:
Industrial Ethernet/IP
Modbus RTU
Modbus TCP
Profinet RT/IO
Profibus DPV1
Process Control:
Two independently configurable Form C relays. Load capacity: 30V, 100mA max (ext. supplied)
Configure to flow rate
for high/low/range rate alarm. Programmable release values enable auto release or manual batching operation.
Configure to flow total
for automatically triggered, timed batch operations for proportional feed applications.
|
|
Environment
|
NEMA 4X (IP66) |
|
Dimensions
|
Meter size:
Dimensions: 7.24H x 6.69W x 3.11D inches (184H x 170W x 79D mm)
Weight:
3.7 lb. (1.7 Kg.)
|
Tech. Data Sheet (PDF) 85000-117
Instruction Manual (PDF) 80000-493

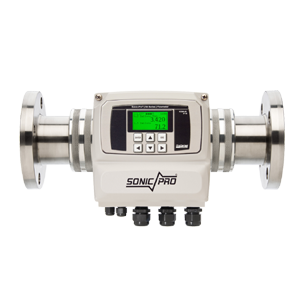

Sonic-Pro S4 Ultrasonic Flowmeters
