CHEM-FEED Single Engineered Skid Systems for ProSeries Metering Pumps

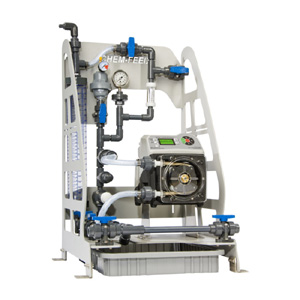

Single Engineered Skid Systems for ProSeries® Metering Pumps

  • Efficient, Small footprint Design

  • The pre-fabricated design allows for easy installation, simply drop the Skid System in place and make your connections.

  • Each system is rigorously factory tested.

  • Includes pressure switch option.

  • Easy access to wiring components from the rear of the system.

  • Joints use Weld-On 724 solvent cement which is chemically resistant to Sodium Hypochlorite and other chemicals.

  • Dual side inlets enable connection of multiple skids to the same inlet.

  • Available with the factory options, Custom modifications are not possible.

Optional Flow Verification Sensor for monitoring system: Chemical injection failure stops pump, and triggers an alarm relay to start a back-up pump

Construction

  • Skid
    Polyester powder coated 6061 T6 aluminum.
    Welded joint construction.

  • Mounting Pads
    316 Stainless Steel (non-wetted part).

  • Piping & Unions
    PVC Schedule 80 (optional CPVC)

  • Inlet Y Strainer
    PVC body (optional CPVC), FKM elastomers (optional EPDM
    Suggested for diaphragm pump applications.

  • Tubing
    Reinforced braided PVC, 200 PSI max

  • Tubing Clamps
    300 series SS band, 400 Series SS screw

  • Drip tray
    Polypropylene, 4 gallon containment each tray

Components:

  • Vented Ball Valves (Dual Skid includes eight)
    True unions, PVC body, PTFE shaft bearings and seats
    FKM elastomers (optional EPDM)
    Manufacturer: Plast-O-Matic®

  • Pressure Relief Valve (PRV)
    5-100PSA setting range, 125PSI max system pressure
    PVC body (optional CPVC), PTFE primary diaphragm seal
    Manufacturer: Plast-O-Matic®

  • One Way Check Valve
    PVC Body (Optional CPVC), FKM diaphragm (optional EPDM)
    Manufacturer: Plast-O-Matic®

  • Flow Indicator
    Machined cast acrylic, PVC connections, ceramic ball, polypropylene ball stop
    PVC half unions, FKM seals (optional EPDM)
    Manufacturer: Blue-White Ind.®

Optional Components:

  • Flow Verification Sensor (Six flow ranges available)
    PVDF body, PVC socket weld fittings
    FKM elastomers (optional EPDM)
    Manufacturer: Blue-White Ind.®

  • Calibration Cylinder
    PVC clear body, PVC end caps, 1/4" ID tubing, outlet vent
    Volume capacities: 1.6 GPH (100mL), 4 GPH (250mL), 8 GPH (500mL), 16 GPH (1,000mL), 32 GPH (2,000mL)

  • Pulsation Dampener
    PVC body, 10 cubic inch volume, FKM bladder (optional EPDM bladder)
    Manufacturer: Plast-O-Matic®

  • Pressure Gauge with Guard
    Liquid filled stainless steel with blowout plug, bottom mount, 1/4" NPT threads
    PVC body (CPVC optional), FKM diaphragm seal
    Available Pressure Ranges: 0-30 PSI, 0-100PSI, 0-200PSI
    Manufacturer: Plast-O-Matic®

Pump:

(Sold Separately)
Flex-Pro® model A2, A3 or A4 peristaltic pumps or
Chem-Pro® model C2 or C3 diaphragm pump.
Manufacturer: Blue-White Industries
