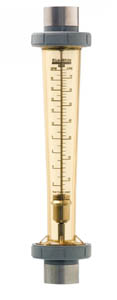

F-452 Polysulfone Molded Flow Meter
| Pipe sizes 2" F/NPT 2" socket fusion |
Flow from
Liquid: 2 to 175 GPM (8 to 675 LPM)
Air: 4 to 240 SCFM (7 to 400 M³/Hr) |
| High Volume |
Polysulfone meter body resists high temperatures and pressures. 316SS or Hastelloy rod guided float. Direct reading permanent scale. Adapters and unions engineered for increased protection from misalignment and vibration. Custom calibrations, materials, and Private labeling available. Very low pressure drop. Not recommended for direct sunlight. In-Line (vertical) mount only. Optional polycarbonate splash shield
| Max. Working Pressure: |
150 psig (10.3 bar) @ 70° F (21° C) |
| Max. Fluid Temperature: |
200° F (93° C) @ 0 PSI |
| Full Scale Accuracy: |
+/- 2% |
| Meter Body Material: |
Polysulfone |
| Adapter Material: |
2″ F/NPT: Polysulfone
2″ Socket Fusion: Polypropylene or PVDF
|
| Union Nuts: |
Glass fiber reinforced Nylon |
| Guide Rod Material: |
316 SS or Hastelloy C-276 |
| O-ring Material: |
FKM (Optional EP) |
| Max Pressure Drop: |
2 PSI |
| Approx. Shipping Weight: |
5 lb. (2.27 kg) |
Liquid (water)
2-20 GPM / 8-78 LPM 6-60 GPM / 30-230 LPM 8-80 GPM / 40-300 LPM 6-100 GPM / 20-380 LPM 20-130 GPM / 80-500 LPM 25-175 GPM / 100-675 LPM
Gas (air)
|
