F-400N Acrylic Flowmeter

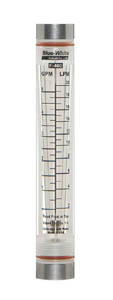

F-400 Acrylic Flowmeter

Pipe sizes 1/4", 3/8" and 1/2" F/NPT
Flow from Liquid: 0.025 to 5 GPM (0.1 to 20 LPM) Air: 4 to 80 SCFM (8 to 140 M3/hr)
Acceptable in Direct Sunlight

Description

  • Durable, highly polished, one piece meter body.

  • Annealed for added strength and chemical resistance.

  • Acceptable for outdoor installations (acceptable in direct sunlight)

  • Direct reading permanent scale.

  • White back reflector for easy reading.

  • Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.

Specifications
    Max. Working Pressure: 150 PSI (10.3 bar) @ 70˚F (21˚C)
    Max. Fluid Temperature: 150°F (65°C) @ 0 psig
    Full Scale Accuracy: +/- 5%
    Meter Body Material: Acrylic
    Float Material: 316 SS (optional Hatelloy-C)
    O-ring Seal Material: FKM (Optional EP)
    Adapter Material: Polypropylene
    Approx. Shipping Weight: ½ lb. (.23 kg)
    NIST Certificates Optional

Flow Ranges

Liquid (Water):

  • 0.025 – 0.250 GPM / 0.1 – 1.0 LPM

  • 0.1 – 1.0 GPM / 0.4 – 4.0 LPM

  • 0.2 – 2 GPM / 1 – 7.5 LPM

  • 0.3 – 3.0 GPM / 1.5 – 11 LPM

  • 0.5 – 5 GPM / 2 – 20 LPM

Gas (Air):

  • 0.20 – 2.0 SCFM / 0.4 – 3.2 M3/hr

  • 0.75 – 7.5 SCFM / 1 – 10 M3/hr

  • 1.00 – 12.0 SCFM / 2 – 20 M3/hr

  • 2.0 – 20.0 SCFM / 4 – 34 M3/hr


Tech. Data Sheet (PDF) (PN 85000-032
Instruction Manual (PDF) (PN 80000-362)
