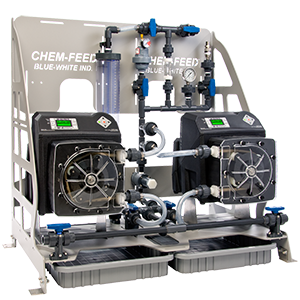

CHEM-FEED® Dual Engineered Skid Systems for ProSeries® Metering Pumps

Dual Engineered Skid Systems for ProSeries® Metering Pumps

• Efficient, Small footprint Design

• The pre-fabricated design allows for easy installation, simply drop the Skid System in place and make your connections.

• Each system is rigorously factory tested.

• Includes pressure switch option.

• Easy access to wiring components from the rear of the system.

• Joints use Weld-On 724 solvent cement which is chemically resistant to Sodium Hypochlorite and other chemicals.

• Dual side inlets enable connection of multiple skids to the same inlet.

• The Dual Skid is capable of simultaneous chemical injection of different or like chemical; or one pump can be used as a back-up pump sitting in standby.

• Available with the factory options, Custom modifications are not possible.

• Optional Flow Verification Sensor for monitoring system: Chemical injection failure stops pump, and triggers an alarm relay to start a back-up pump

Construction

• Skid
  Polyester powder coated 6061 T6 aluminum.
  Welded joint construction.

• Mounting Pads
  316 Stainless Steel (non-wetted part).

• Piping & Unions
  PVC Schedule 80 (optional CPVC)

• Inlet Y Strainer
  PVC body (optional CPVC), FKM elastomers (optional EPDM)
  Suggested for diaphragm pump applications.

• Tubing
  Reinforced braided PVC, 200 PSI max

• Tubing Clamps
  300 series SS band, 400 Series SS screw

• Drip tray
  Polypropylene, 4 gallon containment each tray

Components:

• Vented Ball Valves (Dual Skid includes eight)
  True unions, PVC body, PTFE shaft bearings and seats
  FKM elastomers (optional EPDM)
  Manufacturer: Plast-O-Matic®

• Pressure Relief Valve (PRV)
  5-100PSA setting range, 125PSI max system pressure
  PVC body (optional CPVC), PTFE primary diaphragm seal
  Manufacturer: Plast-O-Matic®

• One Way Check Valve
  PVC Body (Optional CPVC), FKM diaphragm (optional EPDM)
  Manufacturer: Plast-O-Matic®

• Flow Indicator
  Machined cast acrylic, PVC connections, ceramic ball, polypropylene ball stop
  PVC half unions, FKM seals (optional EPDM)
  Manufacturer: Blue-White Industries

Optional Components:

• Flow Verification Sensor (Six flow ranges available)
  PVDF body, PVC socket weld fittings
  FKM elastomers (optional EPDM)
  Manufacturer: Blue-White Ind.®

• Calibration Cylinder
  PVC clear body, PVC end caps, 1/4” ID tubing, outlet vent
  Volume capacities: 1.6 GPH (100mL), 4 GPH (250mL), 8 GPH (500mL), 16 GPH (1,000mL), 32 GPH (2,000mL)

• Pulsation Dampener
  PVC body, 10 cubic inch volume, FKM bladder (optional EPDM bladder)
  Manufacturer: Plast-O-Matic®

• Pressure Gauge with Guard
  Liquid filled stainless steel with blowout plug, bottom mount, 1/4” NPT threads
  PVC body (CPVC optional), FKM diaphragm seal
  Available Pressure Ranges: 0-30 PSI, 0-100PSI, 0-200PSI
  Manufacturer: Plast-O-Matic®

Pump:

(Sold Separately)

Flex-Pro® model A2, A3 or A4 peristaltic pumps or

Chem-Pro® model C2 or C3 diaphragm pump.

Manufacturer: Blue-White Ind.®
